    Pure sine wave 3200W Hybrid Solar Charge Inverter

    Ask Lasest Price
    Brand Name : CONSNANT
    Model Number : CNS
    Certification : CE,ISO9001/ISO14001
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500 pieces per month
    Delivery Time : 20 days after receiving 30% deposit
    • Product Details
    • Company Profile

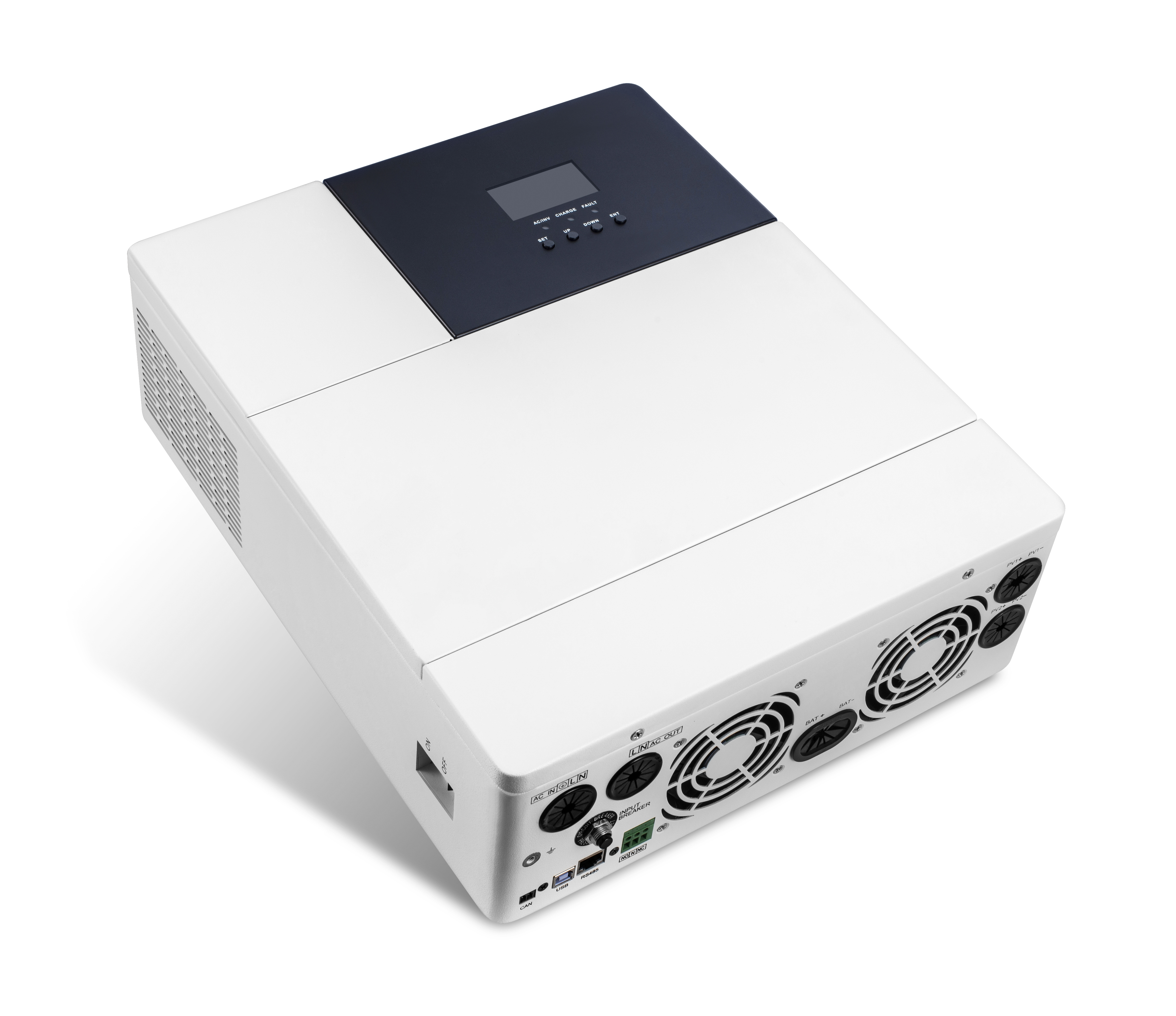

    Pure sine wave 3200W Hybrid Solar Charge Inverter

    All-in-one solar charge inverter


    overview:

    CNS series is a new all-in-one hybrid solar charge inverter, which integrates solar energy storage & means charging energy storage and AC sine wave output. Thanks to DSP control and advanced control algorithm, it has high response speed, high reliability and high industrial standard. Four charging modes are optional, i.e. Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging; and two output modes are available, i.e. Inverter and Mains, to meet different application requirements.

    The solar charging module applies the latest optimized MPPT technology to quickly track the maximum power point of the PV array in any environment and obtain the maximum energy of the solar panel in real time.It is ideal for AC loads such as household appliances, power tools, industrial equipment, and electronic audio and video equipment.


    Features:

    • Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave.
    • Two output modes: mains bypass and inverter output; uninterrupted power supply.
    • Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.
    • Advanced MPPT technology with an efficiency of 99.9%.
    • Designed with a LCD screen and 3 LED indicators for dynamic display of system data and operating status.
    • ON/OFF rocker switch for AC output control.
    • Power saving mode available to reduce no-load loss.
    • Intelligent variable speed fan to efficiently dissipate heat and extend system life.
    • Lithium battery activation design, allowing access of lead-acid battery and lithium battery.
    • 360 ° all-round protection with a number of protection functions.
    • Complete protections, including short circuit protection, over voltage and under voltage protection, overload protection, reverse protection, etc.

    All-in-one solar charge inverter: The energy conversion unit of the whole system.

    Specific system wiring method depends on the actual application scenario.


    parameter:


    ModelsCNS4830S60CNS4840S60CNS4850S80CNS4825U60CNS4830U60CNS4835U80
    AC mode
    Rated input voltage220/230Vac110/120Vac
    Input voltage range

    (170Vac~280Vac) ±2%

    (90Vac-280Vac) ±2%

    (90Vac~140Vac) ±2%
    Frequency50Hz/ 60Hz (Auto detection)
    Frequency Range

    47±0.3Hz ~ 55±0.3Hz (50Hz);

    57±0.3Hz ~ 65±0.3Hz (60Hz);

    Overload/short circuit protectionCircuit breaker
    Efficiency>95%
    Conversion time (bypass and inverter)10ms (typical)
    AC reverse protectionAvailable
    Maximum bypass overload current40A
    Inverter mode
    Output voltage waveformPure sine wave
    Rated output power (VA)300040005000250030003500
    Rated output power (W)300040005000250030003500
    Power factor1
    Rated output voltage (Vac)230Vac120Vac
    Output voltage error±5%
    Output frequency range (Hz)

    50Hz ± 0.3Hz

    60Hz ± 0.3Hz

    Efficiency>90%

    Overload protection


    (102% < load <125%) ±10%: report error and turn off the output after 5 minutes;

    (125% < load < 150%) ± 10%: report error and turn off the output after 10 seconds;

    Load >150% ±10%: report error and turn off the output after 5 seconds;

    (102% < load <110%) ±10%: report error and turn off the output after 5 minutes;

    (110% < load < 125%) ± 10%: report error and turn off the output after 10 seconds;

    (Load >150% ±10%): report error and turn off the output after 5 seconds;

    Peak power6000VA8000VA10000VA5000VA6000VA7000VA

    Loaded motor capability


    2HP3HP4HP1HP1HP2HP
    Output short circuit protectionCircuit breaker
    Bypass breaker specifications40A
    Rated battery input voltage48V (Minimum starting voltage 44V)
    Battery voltage rangeUndervoltage alarm/shutdown voltage/overvoltage alarm /overvoltage recovery... settable on LCD screen)
    Power saving modeLoad ≤25W
    AC charging
    Battery typeLead acid or lithium battery
    Maximum charge current60A30A
    Charge current error± 5Adc
    Charge voltage range40 –58Vdc40 –60Vdc
    Short circuit protectionCircuit breaker and blown fuse
    Circuit breaker specifications40A
    Overcharge protectionAlarm and turn off charging after 1 minute
    PV charging
    Maximum PV open circuit voltage145Vdc
    PV operating voltage range60-145Vdc
    MPPT voltage range60-115Vdc
    Battery voltage range40-60Vdc
    Maximum output power3200W4200W3200W4200W
    PV charging current range (can be set)0-60A0-80A0-60A0-80A
    Charging short circuit protectionBlown fuse
    Wiring protectionReverse polarity protection
    Certified specifications
    CertificationCE(EN62040-1)
    EMC certification levelEN62040-2, C2
    Operating temperature range-15°C to 55°C
    Storage temperature range-25°C ~ 60°C
    Humidity range5% to 95% (Conformal coating protection)
    Noise≤60dB
    Heat dissipationForced air cooling, variable speed of fan
    Communication interfaceUSB/RS485(Bluetooth/WiFi/GPRS)/Dry node control
    Size (L*W*D)430mm*338mm*126mm
    Weight (kg)11
