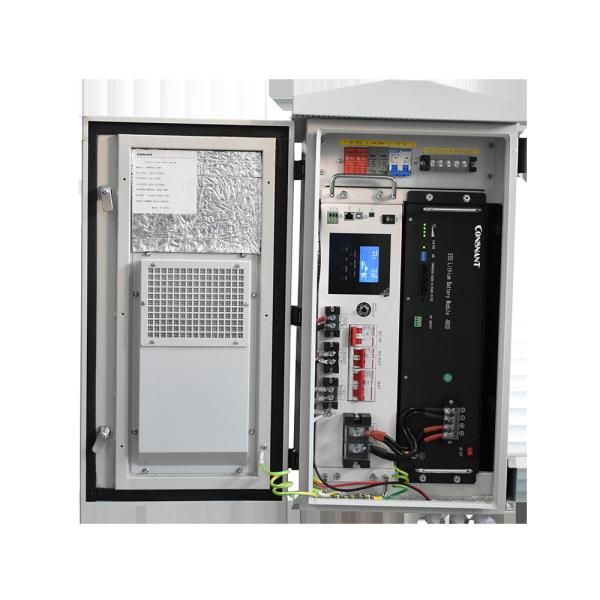

CNW110 Series Integrated Outdoor Online UPS Power System Outdoor
Equipment Cabinet 1-10KVA
Product Description:
Application:
This UPS is commonly used in the corner of the city, remote roads,
mountains, bad environment, such as high temperature (+50 ℃)/low
temperature(-40°C),severe dust,moisture,rain,misterosion, very poor
power quality(voltage Jongterm higher than 260V or less than 160V,
frequency abnormal change)in the area.
Reliable power Rich experience:
CNW110 series communication marginal network outdoor UPSis special
for wireless communication system of outdoor micro
cellular base station and design of a high-performance integrated
outdoor online uninterrupted power supply system, has the very high
technology advancement and practicability.
Key Features:
- The CONSNANT Outdoor Intelligent High Frequency Online UPS provide
continuous pure sine wave AC power supply for outside
communications/network equipment.
- Double-conversion online design, high temperature
resistant,anti-cold, sealing level for IP55; With the wide range of
input voltage and frequency of input window(-45%+35% rated voltage
and ±10% rated frequency), in many remote areas of China after a
severe test of the grid.
High Reliability of the UPS System
■ Using microprocessor control, directly produce high frequency pulse
width modulation wave(SPWM)control of the UPS inverter, to simplify
the UPS control circuit, to improve the stability, to lhave more
real-time UPS to quickly respond to changes in the external
environment and guaranteee the machine's control circuit is more
simple and reliable.
■ Using digital control techniques, to avoid the traditional
analogcontrol temperature drift inherent defects such as hardware
parameters,to ensure consistency and reliability of UPS.
Fine dust-proof,water-proof features
According to the overall standard ofdesign dust-proof and
water-proof IP55
■ With a sun protection, heat insulation, roof ventilation
■ With waterproof and the filtration dustinlet; the cabinet front
door shutters with waterproof design, on the back of weldingwater
tank, water tank installed above the net with quick release feature
of the dust.
Environmental adaptability
- Wide input voltage, avoids frequent switching to battery power
because of large power grid voltage, reduce battery failure
probability, adapt to the power environment in poor areas.
- Input Frequency Range 45~55Hz, to ensure the fuelgenerator can
access all kinds of stability to meet user requirements for use on
the oil machine.
Optional accessories Heat exchanger
The environment which require higher IP level, we use heat
exchanger to effectively reduce the temperature of box inside and
improve IP protection level.
Heater and temperature controller
In response to low temperature climate impact of batteries and
UPS,we adopt ajustable heating device to ensure theUPS and battery
life of normal use.
Outdoor Online UPS Technical Parameter:
| Model | CNW110-1KVA | CNW110-2KVA | CNW110-3KVA | CNW110-6KVA | CNW110-10KVA |
| Capacity | 1KVA/0.8KW | 2KVA/1.6KW | 3KVA/2.4KW | 6KVA/4.8KW | 10KVA/ 8KW |
| Nominal voltage | 220/230/240VAC |
| Frequency | 50Hz/60Hz |
| Input |
| Voltage Range | 115~295VAC(±3VAC) | 176~297VAC(±3VAC) |
| Frequency Range | 50Hz(46~54 Hz);60Hz(56~64 Hz) |
| Soft Start | 0~100% 5sec |
| Power factor | 0.98 |
| Output |
| Voltage Precision | 220/230/240VACX(1±2%)VAC |
| Frequency Precision | 50Hz/60Hz±0.05Hz |
| Power Factor | 0.710.8(optional)standard 0.7 |
| Wave Distortion | Linear load<3% Non-linear load<6% |
| Overload capability | Overload(110~150%)for 30 seconds,then automatically transfer to
bypass.When load is normal,it can automatically transfer to normal
mode |
| Crest Factor | 3:01 |
| Transfer time | 0ms(AC to DC) |
| DC Supply Voltage | 36VDC | 96VDC | 96VDC | 240VDC | 240VDC |
| Charging current | 4A/8A(optional) | 4A/8A(optional) | 4A/8A(optional) | 4.2A | 4.2A |
| Internal Battery Capacity | (38/65/80/100AH) optional |
| Panel display |
| LED | Load level/Battery level ,Battery indicator,Utility power,Inverter
,Bypass,Overload,Fault |
| Communications | |
| Communicate interface | RS232,SNMP card (optional) |
| Work Environment |
| Temperature | -40℃~55℃ |
| Humidity | 0~95%(Non-condensing |
| Storage Temperature | -25℃~55℃ |
| Elevation | <1500m |
| Physical Characteristics |
| Net Weight(KG) | 85 | 125 | 125 | 150 | 150 |
| Dimensions:(WxDxH)mm | 613*640*954 | 650*753*1227 | 650*753*1227 | 940*940*1770 | 940*940*1770 |
