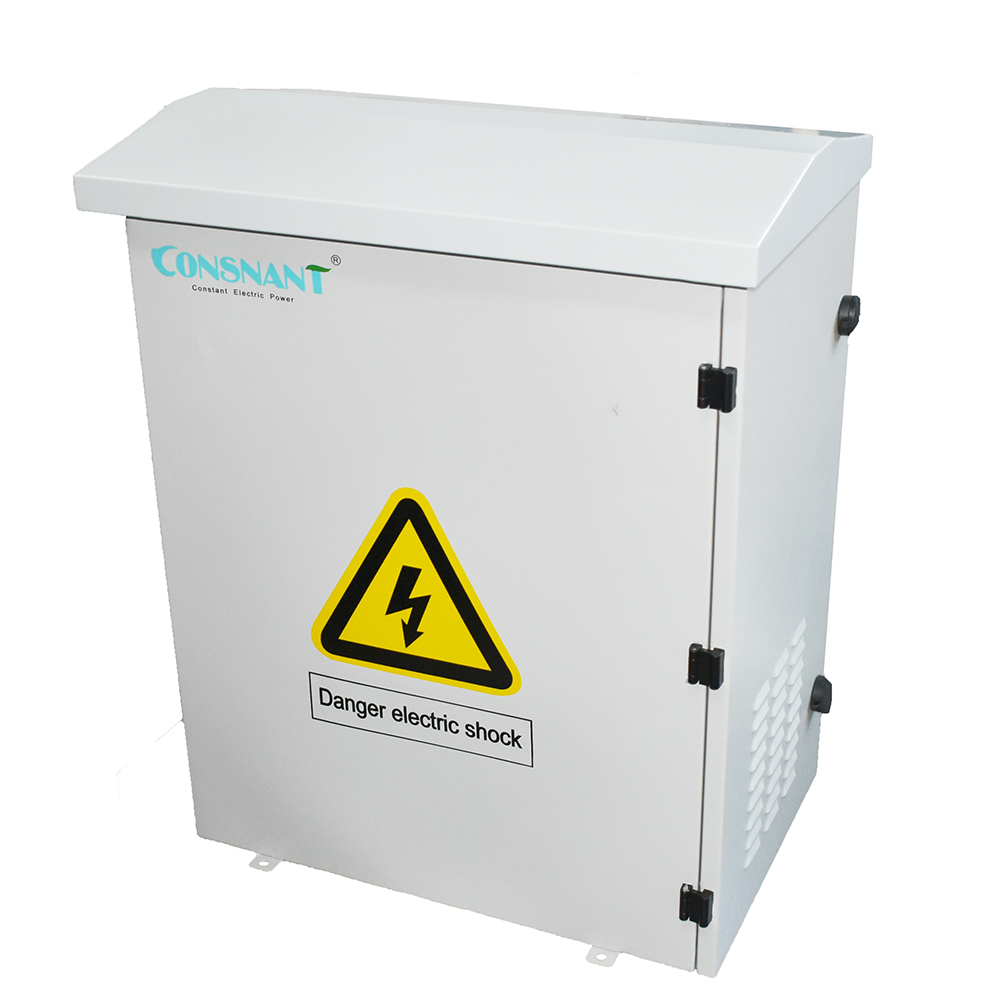

3KW 5KW Integrated outdoor solar power systems 2.56KWH

CNW4850L Series Environmental Adaptability:

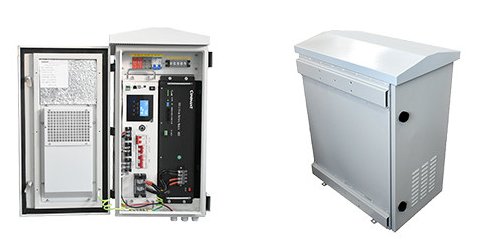

Appearance And Internal Structure:


Key Feature:
■ It comes with double l ithium battery activation modes: mains and PV, and supports l ithium battery access.
■ Al l-round protection for solar panels includes overload and short circuit protection, under-voltage and
over-voltage protection, and reverse polarity protection.
■ With sun protection, heat insulation, roof venti lation.
■ With waterproof and the filtration dust inlet.
■ The cabinet body is designed for the IP55 protection level. The cabinet front door shutters with waterproof
design, on the back of welding outdoor cabinet.
■ Modular design is easy to maintain.
■ System configuration AC and DC lightning protection

Specification Refer:

Application And Environmental Adaptability:
1. Wide input voltage, avoids frequent switching to battery power because of large power grid voltage, reduce
battery failure probability, adapt to the power environment in poor areas.
2. The environment which require higher IP level, we use heat exchanger to effectively reduce the temperature
of box inside and improve IP protection level .

Remark:
■ Long-term storage of the battery needs to be placed in a dry, clean, dark, and well-ventilated environment.
The suitable storage temperature range is -20~35℃.
■ Batteries must be stored and transported in a state close to 50% SOC.
