5KW Integrated outdoor solar power system 2.56KWH
Product Description:
■ The whole system integration includes an off-grid solar inverter
module, lithium iron phosphate
battery pack, PDU, and outdoor cabinet.

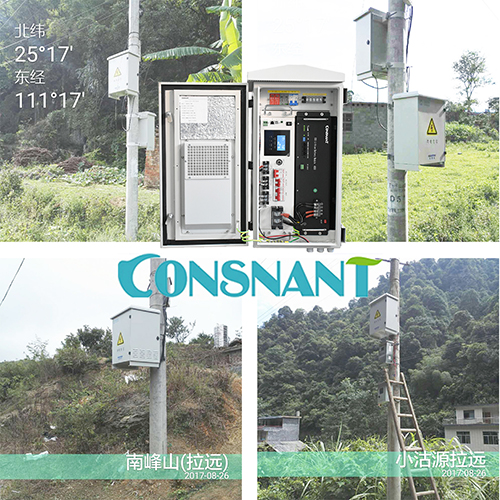

■ The system is commonly used in the corner of the city, remote
roads, mountains, bad environments,
dust, moisture, rain, mist-erosion, very poor power qual ity in the area.
■ The system provides a continuous pure sine wave AC power supply
for outside communications/network
equipment.
Key Feature:
■ It adopts ful l-digital double closed-loop control, combined with
advanced SPWM technology to output
pure sine waves.
■ Two output modes: mains electricity bypass and inverter output;
uninterrupted power supply.
■ Four charging modes: PV Only, Mains Electricity Priority, PV
Priority, and PV&Mains Electricity hybrid
charging.
■ Advanced MPPT technology with 99.9% efficiency.
■ Comes with an LCD display and 3 LED indicators that can clearly
indicate the status and data.
■ Power saving mode, reduce no-load loss.
■ Intel l igent variable-speed fan to efficiently dissipate heat and
extend system l ifespan.
■ It comes with double l ithium battery activation modes: mains and
PV, and supports l ithium battery
access.
■ All-round protection for solar panels includes overload and short
circuit protection, under-voltage and
over-voltage protection, and reverse polarity protection.
■ With sun protection, heat insulation, roof venti lation.
■ With waterproof and the filtration dust inlet.
■ The cabinet body is designed for the IP55 protection level. The
cabinet front door shutters with
waterproof design, on the back of welding outdoor cabinet.
■ Modular design is easy to maintain.
■ System configuration AC and DC lightning protection.
Specification Reference:
| Model | CNW4850L-5KW |
| Input |
| Output voltage waveform | Pure sine wave |
| Rated output power(W) | 5000 |
| Rated output voltage(Vac) | 230 |
| Power factor | 1 |
| output frequency range | 50Hz ± 0.3Hz / 60Hz ± 0.3Hz |
| Bypass circuit breaker | 63A |
| Rated battery input voltage | 48V(minimum starting voltage 44V) |
| Battery voltage range | 48VDC |
| Operating temperature range | -15°C to 55°C |
| Storage temperature range | -25°C ~ 60°C |
| Communication interface | USB/RS485(WiFi/GPRS)/Dry Node Control |
| Dimension(L*W*D) | 482*425*133mm |
| Weight(kg) | 13.3 |
| AC Charge |
| Battery type | Lithium Battery |
| Maximum charge current | 0-60A |
| Charge voltage range | 40-58Vdc |
| Overcharge protection | Alarm and turn off charging in 1 minute |
| DC Charge |
| Maximum PV open circuit voltage | 145VDC |
| PV operating voltage range | 60-145VDC |
| MPPT voltage range | 60-115VDC |
| Battery voltage range | 40-60VDC |
| Maximum output power | 4200W |
| PV charge current range(settable) | 0-80A |
| Lithium Battery Pack |
| Rated Capacity | 48VDC/51.2VDC |
| Cell Resistance 1Khz | 3.65V |
| Working environment temperature | Less than 2000m |
| Cycle life | 2500cycles≥80%, 25±2℃, 1C/1C, 80% DOD |
Environment Superiority:
■ Wide input voltage, avoids frequent switching to battery power
because of large power grid voltage,
reduce battery failure probabi l ity, adapt to the power
environment in poor areas.
■ The environment which require higher IP level, we use heat
exchanger to effectively reduce the
temperature of box inside and improve IP protection level .
Remark:
■ Long-term storage of the battery needs to be placed in a dry,
clean, dark, and well-ventilated indoor
environment. The suitable storage temperature range is -20~35℃.
■ Batteries must be stored and transported in a state close to 50%
SOC.
■ For long-term storage, the electricity needs to be cycled every 6
months.
■ When loading and unloading the battery during transportation,
please be careful not to drop it,
do not stack it over 4 layers, or place it upside down, and ensure
that the front is facing up.
