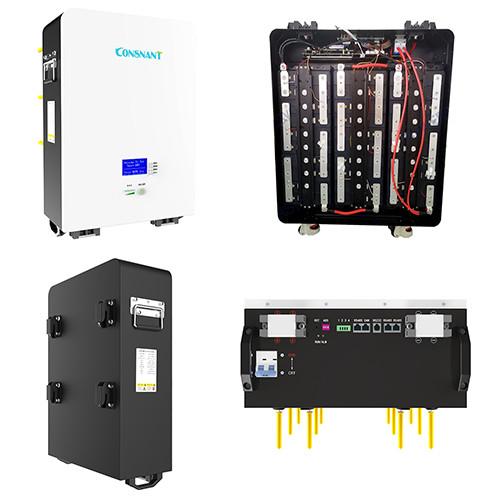

100Ah Lithium-Ion Rechargeable Battery
Description and Model:
This product is a new type of backup power supply for the
development of high-tech products,
with integration, miniaturization, light, intelligent,
standardized, environmental protection and other
characteristics, Standard design, low operating environment
requirements (can be in -20 ~ 60℃,
humidity < 95% normal work), small size, light weight, easy
installation,simple maintenance in the
later stage, can save considerable upfront investment and
maintenance costs in the later stage.can
be widely used in indoor distribution stations, integrated base
stations, marginal stations, distributed
power supply and other commercial industrial fields
Manufacturing standard:
- YDB032-2009 communication backup type lithium ion battery pack;
- YDT - 2011-2344.1 the communication lithium iron phosphate battery
part 1: integrated battery ";
- YDT, 1051-2010" communication board (stand) power system total
technical requirements ";
- YDT - 2005-1363.3 the communication board (station) power supply,
air conditioning and environment centralized monitoring management system "of the relevant standards
Feature:
1. The internal single battery adopts the anode material of lithium
ferrous phosphate (LiFePO4)
(High safety, High energy density and Excellent cycling performance;)
2. The battery pack BMS management system, which has the protection
functions of over discharge,
over charge, over current, high temperature and low temperature to
ensure the safety of the battery
pack;
3. Automatically charge and discharge management;
4. Alarm function: when the battery voltage is lower than the alarm
value or too low, it will automatically
power down to protect the battery;
5.The battery pack has good electromagnetic compatibility.
Reference:
| NO. | Item | Specification |
1 | Nominal Capacity | 100Ah |
| 2 | Watt Hour | 4800Wh |
| 3 | Nominal Voltage | 48V |
| 4 | Operating voltage range | 37.5V~54.75V |
| 9 | Cycle Life | ≥3000 cycles (0.5C charge ,0.5C discharge)
80%DOD；±25℃ |
| 11 | Storage Temperature | -20℃-50℃ |
| 13 | Shipment voltage | ≥48V |
| 14 | Charge retention and
capacity recovery capability | Standard charge the battery, and then put aside at
room temperature for 28d or 55 ℃ for 7d, Charge
retention rate≥90%, Recovery rate of charge≥90 |
| 15 | Weight | 51KG |
| 16 | Size | (W399.5×L563×D185mm )±5mm |
| 17 | Designed life | 10 YEARS |
| 18 | Guarantee period | 3 YEARS |
Shipment packaging:
Packaging method:
No fall down, no pile up over 8 layers, and keep face up.
1 Wooden case size: L700*W520*H405mm；
2 Packging carton size: L650*W470*H290mm；
