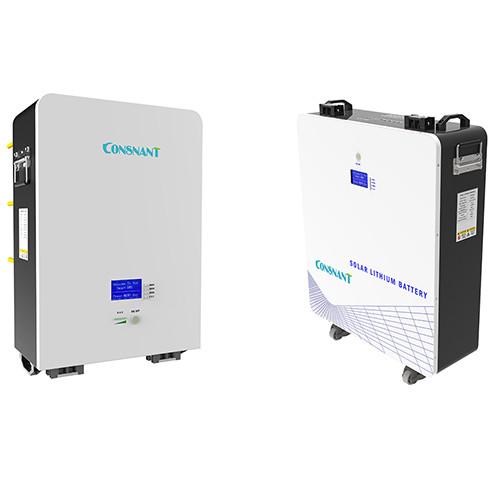

100Ah/200Ah Lithium-Ion Rechargeable Battery
Description and Model:
This product is a new type of backup power supply for the
development of high-tech products,
with integration, miniaturization, light, intelligent,
standardized, environmental protection and other
characteristics.
Adopted by the high safety performance, lithium battery cathode
material for lithium iron phosphate,
high safety, high stability, high cycle life, high specific energy,
specific power, low temperature performance
is superior, but large current charge and discharge, and many other
advantages.
At the same time, using suitable for communication demand special
high performance battery management
system (BMS), with the charge, over discharge, short circuit,
over-current (load), temperature, flow, total
pressure protection, charging under the secondary electricity,
balanced and various protective functions, and
provides CAN , RS485 communication interface and the upper machine
to realize remote monitoring, can be
connected to the base station power environmental monitoring
systems,Intelligent software anti-theft design.
Ensure the life of lithium battery and reduce the daily maintenance
work.
Manufacturing standard:
- YDB032-2009 communication backup type lithium ion battery pack;
- YDT - 2011-2344.1 the communication lithium iron phosphate battery
part 1: integrated battery ";
- YDT, 1051-2010" communication board (stand) power system total
technical requirements ";
- YDT - 2005-1363.3 the communication board (station) power supply,
air conditioning and environment centralized monitoring management system "of the relevant standards
Key Feature:
1. LiFePO4 battery has high safety, high energy density and
excellent cycling performance;
2. BMS battery management system, has the protection functions of
over discharge, over charge,
over current, high temperature and low temperature to ensure the
safety of the battery pack;
3. Automatic charge and discharge management;
4. When the battery voltage is lower than the alarm value, it will
alarm, and when the voltage is too low,
it will automatically power down to protect the battery;
5.The battery pack has good electromagnetic compatibility.
Specification Reference:
| NO. | Item | Specification |
1 | Nominal Capacity | 100Ah | 200Ah |
| 2 | Watt hour | 4800Wh | 9600Wh |
| 3 | Standard charging method | 50A |
| 4 | Maximum continuous charging current | 100A |
| 5 | Standard discharging method | 50A |
| 6 | Maximum
continuous discharge current | 100A |
| 7 | Cycle Life | ≥3000 cycles (0.5C charge ,0.5C discharge)
80%DOD；±25℃ |
| 8 | Communication mode | RS485 |
| 9 | Charge retention and
capacity recovery capability | Standard charge the battery, and then put aside at
room temperature for 28d or 55 ℃ for 7d, Charge
retention rate≥90%, Recovery rate of charge≥90 |
| 10 | Weight | 51KG | 110KG |
| 11 | Size | (W399.5×L563×D185mm )±5mm | (W575×H764×D190mm )±5mm |
| 17 | Designed life | 10 YEARS |
| 18 | Guarantee period | 3 YEARS |
