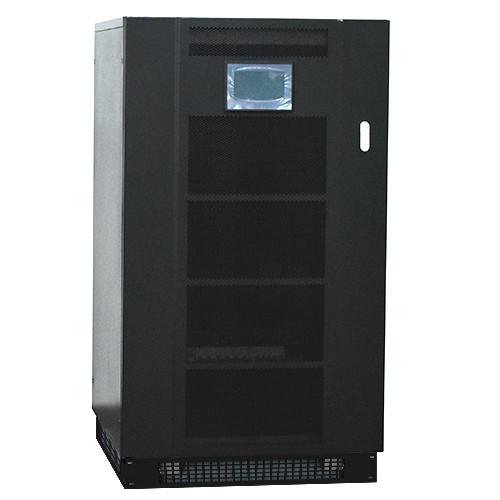

384VDC Low Frequency Online UPS Synchronization Tracking 150KVA

Feature:

SIMPLE TO INSTALL:

■ Capability to install the UPS into any distribution system(neutral not required on rectiﬁer input);

■ Capability to separate the rectiﬁer/bypass power networks and to power them from two separate sources, without Galvanic
isolation (Necessary on UPS without an output transformer).

ADVANCE COMMUNICATION:

■ Compatible with TeleNetGuard for remote maintenance；

■ Advanced, multi-platform communication for all operation systems and network environments: Watch & Save 3000 monitoring

and shut-down software included, with SNMP agent, for Windows 2008, Vista,2003, XP; Mac OS X, Linux, Novel l and
most popular Unix operatingsystems；

■ The UPS is supplied with a cable for direct connection to the PC(Plug and Play)；

■ RS232 double Serial port；Installation slot for an Emergency Power Off (EPO) interface to al low the UPS to be switched off
remotely in an emergency；

■ Generator interface: enables desynchronisation of the UPS output from a generator supply which may be subject to phase and
frequency variations. The interface also enables more economic use of the battery charge.

CNG330 150KVA

Input

Rated voltage

400 Vac three-phase

Voltage range

380/400/415VAC(+25%,Can be set through the LCD panel)

Frequency range

40-70Hz(Automatically select synchronization range according to grid frequency)

Range(HZ)

50±5%(±10%)Bypass synchronization tracking

Battery voltage(VDC)

384

Output

Power factor

0.8/0.9

Voltage(V)

L-N: 220±1% L-L: 380±1%

Waveform distortion

Linear loadTHD<3%; Nonlinear loadTHD<5%

Overload capacity

125% full load for 10 minutes, maintain 150 % full load for 1 minute and then switch to bypass power supply, after reducing the load can automatically restore the inverter

Others

Panel display

LED displays working status and fault indication; LCD displays three-phase input voltage, input frequency, three-phase output voltage, load ,battery voltage, battery charge and discharge current, etc

Display

LCD 7" touch screen display

Alarm function

Battery low voltage, abnormal power supply, overload, UPS failure, over temperature protection

Protection

Input over voltage, battery under voltage, overload, short circuit, over temperature protection

Cooling way

Forced cooling

Packaging & Shipping

Payment T/T,L/C, and money gram
T/T 30% deposit, balance in full before shipment
Packing woodencase / as customer request
Warranty 1 year
