Micro Grid Control Solar Panel Power Inverter Lithium Motor Cabinet 48VDC 2100AH

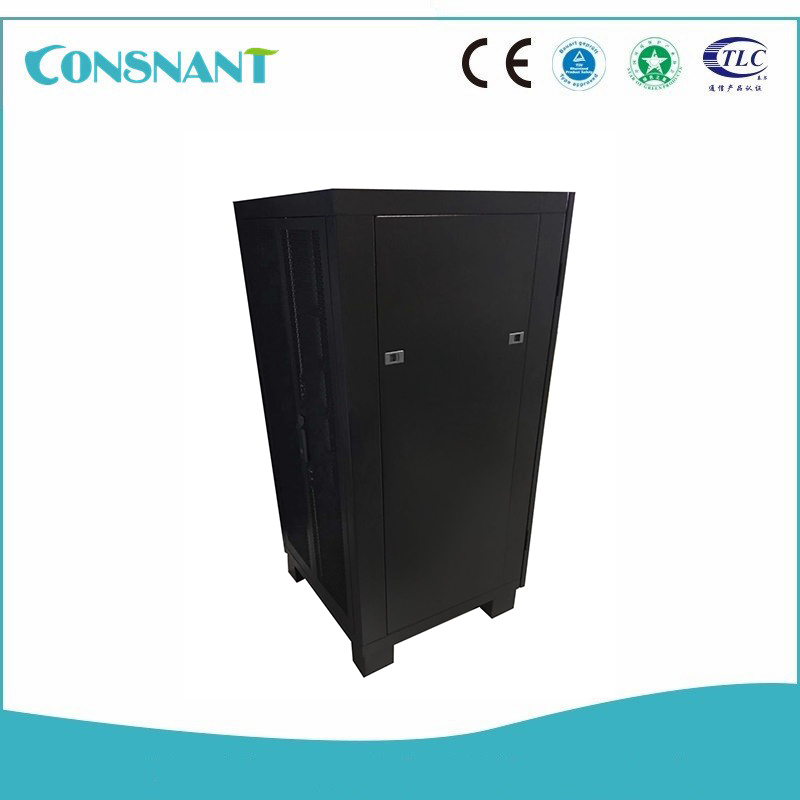

Lithium Motor Cabinet Energy Storage System(Environment Protection)

The lithium motor cabinet energy storage system consists of high-performance lithium battery, BMS battery management system, photovoltaic charging device, inverter device, and corresponding combination to form a multi-capacity, power, functional energy storage system.

The cabinet type energy storage system can be directly connected to the photovoltaic solar panels, and the generated energy can be stored in the battery, or inverted for load use.
At night or when the sunshine is not so strong, the ESS will provide power for loading equipment automatically.
As a control and energy center, a micro-grid will be established in power-free areas to provide reliable and sustained electricity for users.

1. Features

Modular design and it will be easy installation and maintenance.
High performance and high safety lithium iron phosphate battery has long cycle life, safety, energy saving and environmental protection.
Using intelligent management technology to extend battery life.
According to customer customization, it can be connected to the grid and run off the network, supporting multi machine parallel operation.
Micro grid control functions can be used as a micro grid control center to coordinate and match photovoltaic chargers, inverters and other power generation equipment according to load requirements
With perfect overload protection, over temperature protection, output short circuit protection, input under-voltage protection, input over-voltage protection and other functions, stable performance, high product safety and reliability.
It designed with the LCD display, easy to monitor and management.

2.Application

Residential&small bussiness
School&Hospital
Industrial
Government
Company
So on

3.Parameter

Battery cell
Rated capacity	50kW(battery side)	75kW(battery side)	100kW(battery side)
Battery type	LiFePO4 battery
Model of cell	3.2V 65A Square aluminum shell
Battery group array	16S15P	16S23P	16S30P
Voltage range of battery group	44V～57.6V
Cycle life	4000 cycles at 80% DOD
Protection	Short Circuit Protection, Over Charge Protection, Over Discharge Protection, Reverse Polarity Protection, Cell Over Voltage, Cell Under Voltage and Over Temperature
Charge
Battery charge temperature	0～50℃
Maximum charge voltage	59±0.5V
Rated charge voltage	58.4±0.4V
Nominal charge current	200A	300A	380A
Discharge
Battery working temperature	-20℃～60℃
Allowable maximum discharge current	250A 1min	250A 1min	250A 1min
Rated allowable maximum discharge current	200A
Discharge termination voltage	40
Self Discharge Rate	Less than 3% per month(nominal temperature)
Inverter
Type	Stand-alone Inverter (Off Grid Inverter) Single phase output transformer or galvanic isolation
Rated power	5.0kW7.5kW10kW Remark: AC output power continuously 5.0KW/7.5KW/10kW at electrical load type : Unity power factor (pf=1)
Nominal Input Voltage	48VDC
Output voltage	110V-220VAC
Output voltage regulation	Less than 5% at steady state load
Total harmonic distortion (THDv)	Less than 4% when the electrical load is 0.8 lagging power factor
Maximum surge power	200% of nominal power
Maximum running current	75
Overload ability(10min)	110%
AC input frequency	50HZ/60HZ(automatic tracking)
Output frequency range	50HZ/60HZ±0.3HZ
Output efficiency	≥85%
Wave form	Pure sine wave form
Protection	Over Load, Short Circuit, Over Input Voltage, DC Reverse Polarity, Battery Low Voltage Cut Off (automatic reconnect) and Over Temperature
Communication	RS232/RS485 with data logger
Solar panel
Rated power	22.0kW	30.0kW	38.0kW
Maximum stable operating power	22.0kW	30.0kW	38.0kW
DC start voltage(Vdc)	70V	70V	70V
Minimum DC start voltage (Vdc)	70V	70V	70V
Maximum DC voltage(Vdc)	145V	145V	145V
Charge current	180A	250A	350A
Solar Charge Controller
Max PV input power at STC (Standard Test Condition)	5KW	7.5KW	10KW
Output voltage charger to battery	48VDC	48VDC	48VDC
MPPT (Maximum power point tracking) charger at STC	5KW	7.5KW	10KW
Charge and Discharge controller as SOC (Stage of Charge)
Charge Controller can communicate with BMS of all LFP battery module and can control, setting, display data to LCD display
Battery Reverse Polarity Protection
