32 Pcs Energy Storage Systems With Intelligent Automatic Calibration Battery

Intelligent Automatic Calibration Battery Energy Storage System 32 pcs 50Ah LiFePO4 battery

High Reliability Solar Power Inverter Intelligent BMS Battery Energy Storage System

5.2KWH Battery Energy Storage System(ESS)

32 pcs 50Ah LiFePO4 battery
25.6/51.2Vdc 5.2Kwh rated capacity
Long cycle life 3500 times at least on 80%DOD
Customized charger make system life maxmizatin
High reliability intelligent BMS
Unique automatic calibration active balancing tachnology BMS system
25.6Vdc/51.2Vdc voltage output,suitable for home energy storage system,communication station and other application
Standard CAN&RS485 conmmunication port,can meet the requirement of several packages to connect in parallel,Master&Slave relationship,Monitor and otherprolongation functions.

Operation Principle:

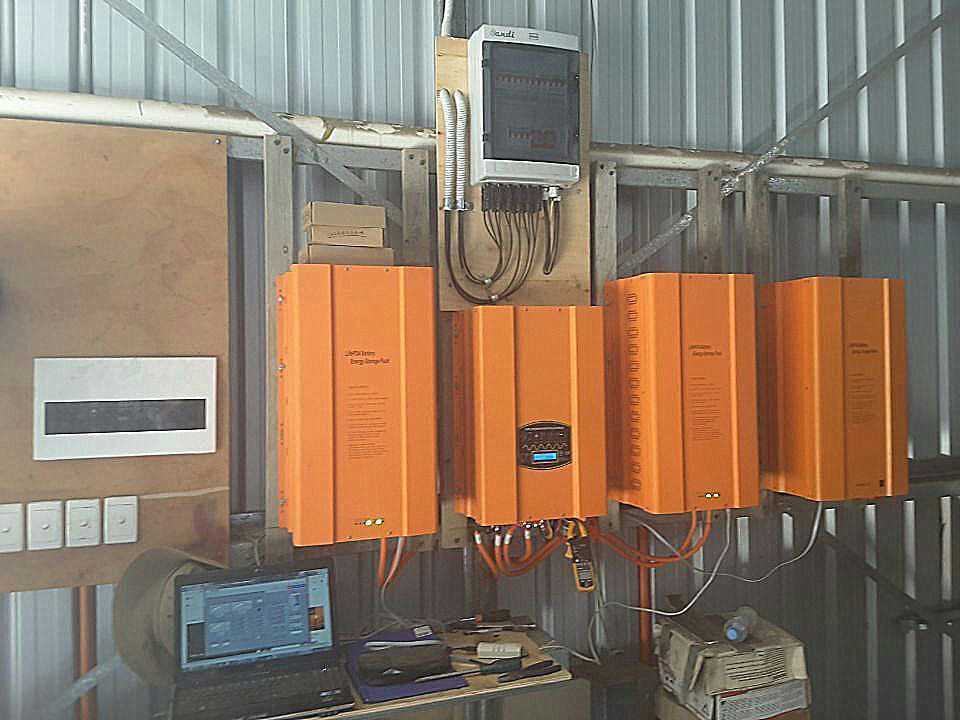

Energy storage in power system including solar panels,inverter(for AC and DC conversion),and provide backup power for the main electrical backup lines.Household electricity demand different choice of different components.

Technical Specifications:

Basic Specification
NO	ITEMS	Description
Normal specification
1	Rated Voltage	25.6V	51.2V
2	Rated Capacity	200Ah	400Ah
3	Rated Energy	5.2KWH	5.2KWH
4	Battery Configuration	8S4P	16S2P
5	Battery Cell
Standard Charge
1	Battery operation temperature range @charging	0-45℃
2	Max charge voltage	29.2±0.2V	58.4±0.4V
3	Rated charge voltage	28.0±0.2V	56.0±0.4V
4	Allowed MAX charge cuurent	60A	60A
5	Rated charge current	50A	50A
Standard discharge
1	Battery operation temperature range @dicharging	-20~60℃
2	Output Voltage Range	20-29.2V	40-58.4V
3	Allowed MAX discharge current	110A1min	110A1min
4	Peak discharge current	120A 5s	120A 5s
5	Rated discharge current	100A	100A
6	Discharge Cut-off Voltage	20V	40V
Operation and Indicator
1	Power Switch	ON:all function start OFF:all function shut dowm
2	Run LED(green)	Lighting:System working normal Flash:System standby
3	Alarm LED(red)	Lighting:System Fault Flash:System warning
4	SOC LED(4pcs green)	Charging: SOC<25% LED1,LED2,LED3,LED4flash in turn 25%<SOC<50% LED1lighting,LED2,LED3,LED4 flash in turn 50%<SOC<70% LED1,LED2lighting,LED3,LED4flash in turn 75%<SOC<75% LED1,LED2,LED3lighting,LED4flash in turn Discharge: SOC>75% LED1,LED2,LED3,LED4lighting 50%<SOC<75% LED1,LED2,LED3lighting,LED4off 25%<SOC<50% LED1lighting,LED2,LED3,LED4off SOC<10% LED1 flash,LED2,LED3,LED4 off
Communication
1	RS485	For LCD remote control(option)
2	CAN	PC control and monitor(one communication CAN card support ten packs parallel)
Mechanical Characteristics
1	Dimension	LWH(unit)=680400238mm
1	Dimension	LWH(shipping)=815425515mm
2	Weight	N.W.64kg;G.W.78kg
Storage and Transportation requirements
1	Storage Temperature	Less than 1 momth	-20~35℃
1	Storage Temperature	Less than 6month	-10~30℃
2	Storage Humidity		45~75%RH
3	SOC	Storage	60~75% SOC
3	SOC	Transport	45~55%SOC
