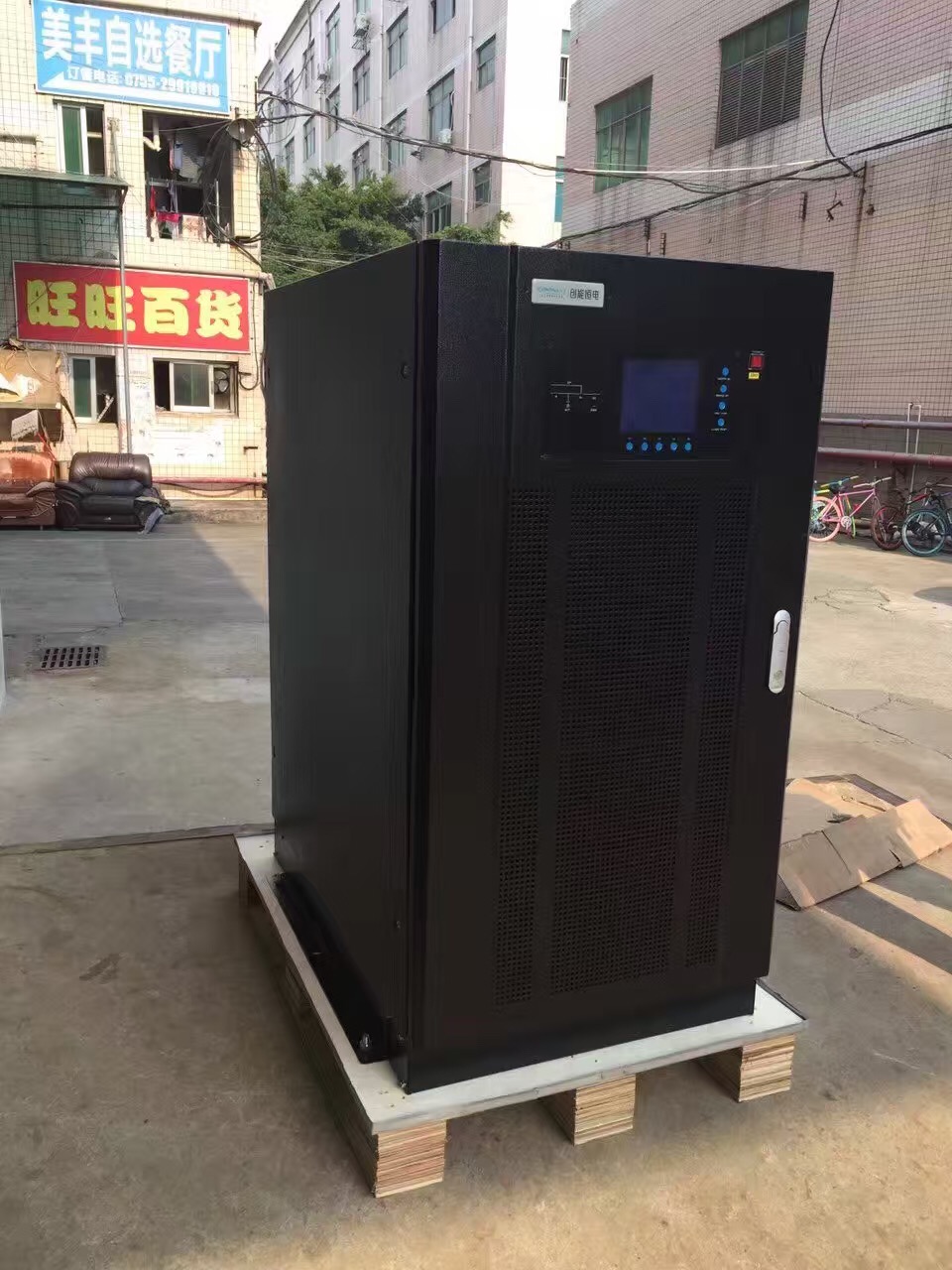

Parallel Redundancy Modular UPS System High Efficiency Three Phase 30 - 90KVA

Description:
CNM330 series is modular online UPS for sensitive equipment. The single cabinet power rating covers from 10KVA to 300KVA which delivers the best of combination of reliability, hot-swappable and flexibility. With the latest IGBT three-level technology and DSP control, CNM330 achieves a high input power factor, low THDi Modular design with N+X redundancy and online hot swapping ,easy to expand the capacity Full DSP control of high stability, reliability and safety Integrated IGBT module with improved performance and reduced size
Application:
Application IDC(Internet Data Center)
Computing center
ISP (Internet Service Provider )
Telecom , Finance, bank and securities , Tax
Hospital system , industrial automation
Precision equipment, etc.
Working principle:
Modular UPS use double conversion on-line structure, including the rectifier, inverter, battery charger, control circuit, the input and output battery connector breaker. Have function that is input power factor compensation. All modules can be online hot-swappable, provide the highest level of availability, and maintainability.
If one power module failure will not affect the system normal working, power module can be online hot-swappable all power module parallel is managed by the control board, in accordance with the unified parameters running, one power module fault can be automatically exit parallel system, will not cause harm to the whole parallel system.
Modular UPS system use independent static bypass module, do not use multiple static bypass structure, avoid caused overload damage modules because of multiple bypass module uneven current when UPS turn to bypass working. The module parallel output voltage accuracy is±1%, parallel circulation current< 1%.
Static bypass module contains bypass static switch only, excluded static switch of the main circuit output; therefore, replacing static bypass module will not cause the system power down or transfer manual maintenance bypass, which can realize online hot-swap replacement.
Features:

• Superior energy saving : Efficiency > 96% at 50%-75% rated load, and > 95% at 25% rated load; Input PF > 0.99,input THDi<3%
• Easy-to-install: Top or bottom cabling, no need of input cabling cabinet.
• Easy-to-maintain: Full front access, UPS, failed part can be replaced shortly
• Easy-to-modify: The number of batter y cells can be configured flexibly, so the original batteries can be used when modifying the legacy system; moreover, the battery cell can be replaced in time when it fails without interrupting the normal operation of UPS.
• Extra large LCD that can display 12 language (Chinese ,English ,Russian, French ,Spanish and so on).
• Provide large LCD touch screen (optional)
• Each UPS modules provide 4.5KW charge capacity. equivalent to 10 to 12A
• Advanced DSP full digital control technologies realize higher system stability, online capacity expansion and maintenance
• Advanced distributed active parallel technology realizes parallel operation of 4 UPS units and online capacity expansion without centralized bypass cabinet
• Adaptive to severe power grid environment due to extra wide input voltage and frequency ranges
• Intelligent battery management maintains battery automatically to prolong the battery life
• The machine system for modular structure, consists of 1 to 10 module's biggest single module to 30kw
• UPS power module supporting hot swappable, capacity upgrade extremely simple.
• Super ability for overload and short circuit, ensure the system stability and safety under the limit state of system
• Communication Ports: RS232,RS485,dry contact, SNMP card, EPO, generator port
• System efficiency: >96% at load above 50%, >95% at load above 25%

Technical Specifications:

(Optional South America 208V must be derating use)
