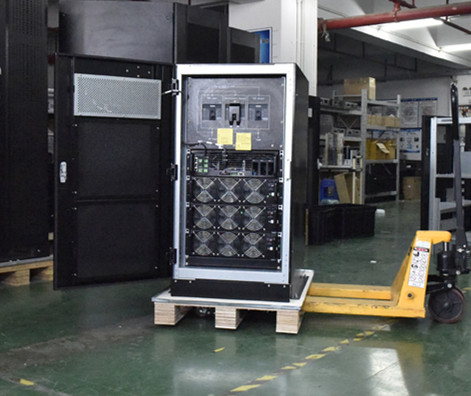

    High Stability Modular UPS System Online Type Long - Acting Back Up Low Noise

    Ask Lasest Price
    Brand Name : CONSNANT
    Model Number : CNM330
    Certification : CE, ISO9001, ISO14001
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 500 pieces per month
    Delivery Time : 20days after receiving 30% deposit
    • Product Details
    • Company Profile

    High Stability Modular UPS System Online Type Long - Acting Back Up Low Noise

    30KVA to 300KVA Low Audible Noise Modular UPS System For Unbalancing Load


    Brief Information:



    CNM330 series is modular online UPS for sensitive equipment. The single cabinet power rating covers from 10KVA to 300KVA which delivers the best of combination of reliability, hot-swappable and flexibility. With the latest IGBT three-level technology and DSP control, CNM330 achieves a high input power factor, low THDi Modular design with N+X redundancy and online hot swapping ,easy to expand the capacity Full DSP control of high stability, reliability and safety Integrated IGBT module with improved performance and reduced size


    Main Characteristics


    • Single system maximum power 300KVA
    • Power module 10-30KW, parallel system provide maximum 4pcs ups operating
    • High efficiency , >95% when load higher than 30%, Maximum efficiency up to 96%
    • High power density,Even for power module, 30KW in 3U height, Power module size, 440×132(3U)×650 ).
    • Low cost , 20-30% cost lower than other company’s product.
    • Support module parallel and hot- swap, good performance for enlarge capacity in field and manufactory, maintenance；
    • High output power factor is 1 for example(150KVA=150KW),high ability for output load.
    • Rectifier and inverter using Three level technology, enhance the efficiency.
    • Using high reliability monitor platform, enhance monitor processing ability, One monitor monitoring and communication with 5 power module and 1 bypass module at the same time.
    • Battery sharing technology in the same cabinet


    Our Service:


    1. 2% spares together with shipment for urgent issue.

    2. All of the necessary documents such as drawing, manual etc.

    3. We will provide the online service by mail

    4. We can despatch engineer to assist you solve the problem if necessary (But you are requested to pay for the cost of ticket, hotel etc. ). you can despatch engineer(s) to our company to get training.

    5. One year warranty



    Technical Specifications:


    ModelCNM330 20-300KVA
    Capacity20-300KVA
    Main Input
    Input Voltage380V/400V/415V
    Input Frequency Range50/60Hz
    Power FactorFull load>0.99 ,Half load >0.98
    THDiTHDi<3%
    Input Power Soft-start Function5-30s settable
    Input Voltage Ranges228V-476V;-20%~25% at Full load ; linear derating at -25% ~- 40%; can take 70% load at -40%
    Frequency Range40-70HZ
    Battery
    Battery Voltage±240VDC(Default),12V Battery 30~40pcs can be choose
    Charge Voltage Accuracy±1%

    Bypass
    Bypass Input Voltage380/400/415VAC 3-phase 4-wire
    Voltage RangeDefault value is -20%~+15%; -40%, -30%, -10% ~ +10%, +15% , other ranges can be set via software
    Overload Capacity

    Long term at 135% rated load ,150%<load<180% more than 10 min,

    load>1000% 100ms


    Output
    Inverter Output Voltage380/400/415VAC 3-phase 4-wire
    Voltage Accuracy±0.5% ( balanced load ) , ±1% ( unbalanced load )
    THDVTHDV<1% (linear load) , THDV<3% (nonlinear load)
    Power Factor0.9
    Three Phase Angle Accuracy120°± 0.5°
    Current Crest Ratio3:1
    Overload Capacity110%1h,125%10mins,150%1mins,>150%200ms
    Transfer Time0ms,15ms (Eco Mode)

    System
    Frequency50Hz/60Hz (Settable)
    Mains Synchronization Range±2Hz(Default value), adjustable with step of 0.5Hz within range of +/- 0.5Hz - 3Hz
    Protection LevelIP20
    Operation Temperature0-40ºC
    Storage Temperature-25ºC~70ºC ( without battery)
    Humidity0-95% (no-condensing)
    Noise(dB)55-62dB,Adjusted with load
    Weightmodule:PM2020KVA power module : 35KG
    module:PM3030KVA power module : 35KG
    module:PM4040KVA power module : 35KG
    Dimension (W x D x H)mm3 module cabinet600X900X1135
    5 module cabinet(5 battery cabinet option)600X1100X2070/
    6 module cabinet600X900X1535
    10 module cabinet900X900X2080
    power module440X650X132(3U)(10KVA/20KVA/30KVA)


    (Optional South America 208V must be derating use)
