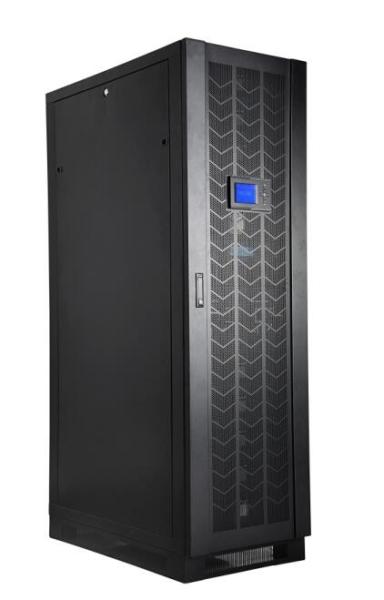

CNM331 Series Flexible Modular Parallel Redundant UPS System 30-300KVA 50HZ

The CNM331 series three phases input and three phases output UPS,adopted modular design and the N+X parallel redundant technology,the capacity from 20KVA to 300KVA. This series of UPS products can almost completely solve all the power problems such as power off, high voltage, low voltage, instantaneous voltage drop, reduce the oscillation, high voltage pulse, voltage fluctuations, surge voltage, harmonic distortion, clutter interference, frequency fluctuations etc. This product is suitable for a wide range of applications, for example: computer equipment, communication systems and automation equipment etc.

Technical parameter:

Model				90kVA		150kVA		300kVA
Capacity	UPS Cabinet			30~90KVA /27~81KW		30~150KVA /27~135KW		30~300KVA /27~270KW
	Power Module			30KVA/27KW
Input	Input type			3 Phase, 4 Wires + Grounding
	Rated Voltage			380/400V/415VAC
	Voltage Range			208~478VAC
	Frequency Range			40~70Hz
	Power Factor			≥0.99
	Bypass Range			Bypass protection highest voltage:+15%(available to choose +5%,+10%,+25%)
				Bypass protection lowest voltage:-45%(available to choose -20%,-30%)
				Bypass protection frequency range:±10%
	Input current harmonic			≤3% (100％ nonlinear load)
Output	Output type			3 Phase, 4 Wires + Grounding
	Rated Voltage			380/400V/415VAC
	Power Factor			0.9
	Voltage accuracy			±2%
	Output Frequency	AC Mode		Synchronize with the input；when the main power frequency over the range of ±10%(available to choose ±1%,±2%,±4%,±5%),output frequency will be 50×(±0.2)Hz
		Battery Mode		(50/60±0.2%)Hz
	Load Crest Ratio			3:01
	Transfer time			AC to Bypass: 0ms(tracking)；AC to Battery:0ms
	Overload Ability			Load ≤110%,60min,≤125%,continue working 10min,≤150% continue working 1min,≥150% off
	Output voltage distortion			≤2% linear load
				≤5% non linear load
Efficiency				Normal Mode ≥92%
Interface	UPS cabinet			RS232,RS485,2 pieces Intelligent Slot,dry contact
Battery	Battery Voltage			±192V±204V±216V±228V±240V DC; (32 pcs,34 pcs,36 pcs,38 pcs,40 pcs are optional)
	Charge current	UPS Cabinet		45Amax	75Amax		150Amax
		Power Module		15Amax
Working Environments	Operation Temperature			0℃～40℃
	Humidity			0～95% no-codensing
	Storage Temperature			-25℃～55℃
	Altitude			< 1500m
Physical characteristics	Body Size W×D×H		UPS cabinet	6008401400	6008401400		60011002000
	(mm)		Power Module	443580131
	Weight		UPS cabinet	157	169		306
	(Kg)		Power Module	33
Standard				CE,EN/IEC 62040-2,EN/IEC 62040-1-1,YD/T1095-2008
