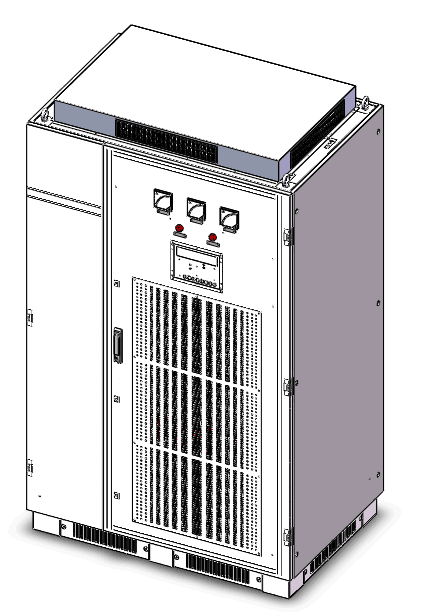

Name: Optional SNMP Card Industrial UPS Power Supply High Grade Protection High Efficiency
Brand: CONSNANT
Price: 1 USD

Ask Lasest Price
Brand Name :	CONSNANT
Model Number :	CNI310
Certification :	CE, ISO9001, ISO14001
Price :	Negotiable
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	1000 pieces per year
Delivery Time :	15-20 days after receiving 30% deposit

Add to Cart

Optional SNMP Card Industrial UPS Power Supply With High Grade Protection

Application:

Petroleum, chemical industry, gas and power station and so on.

Key features:

Adopt full digital control technology
Intelligent detection and monitoring function
Digitally control the static switch with zero switch
Full isolation between input and output
Super low output zero earth voltage
DC UPS isolated with utility power completely
Cubical design with power standard (customization)
Multifunctional protection for overvoltage, under voltage, over current, short circuit and over temperature and so on.
Large-screen LCD monitor with Chinese and English operation interface
Ultralong 256 event record, user-friendly analysis and management to the situation of the power supply (touch screen optional)
Static bypass has a strong anti-overload capability

System:

Operation temperature: 0ºC/ + 40ºC
Relative humidity: <95% non condensing
Color: Light gray (RAL 7035)
Noise: 54dBA at 1m 60dBA at 1m 65dBA at 1m
Protection degree: IP42
Efficiency Smart Mode: Up to 98%
Compliance Safety: EN 62040-1-1(Directive 2006/95/EC); EMC:6200-2(Directive 2004/108/EC)

Technical parameter:

CNI310 10-100KVA
Model	10KVA	15KVA	20KVA	30KVA	40KVA	60KVA	80KVA	100KVA
Capacity	8KW	12KW	16KW	24KW	32KW	48KW	64KW	80KW
Input
Rated voltage	380/400/415 Vac three
Voltage range	±20%
Frequency range	50/60HZ±5%
Power factor	≥0.8
Current harmonic distortion	<5%with harmonic filter
Soft start	0-100% in 10”
Bypass Input
Rated voltage	220/230/240Vac single-phase
Permitted voltage range	±15%(selectable from ±10% to ±25% from front panel)
Rated frequency	50/60Hz
Permitted frequency range	±2%(selectable from ±1% to ±5% from front panel)
Standard features	BackFeed protection; split bypass line
Batteries
Type	Maintenance-free lead-acid VRLA AGM / GEL;NICd
Maximum recharge current(A)	0.2 X C10
DC Voltage	384VDC
AC ripple voltage	<1%
Inverter output
Number of phase	1
Rated voltage(V)	230Vac single phase
Regulation of the output voltage	220~244Vac phase/neutral(from control panel)
Crest factor (Ipeak/Irms)	3:1
Static stability	±1%
Dynamic stability	±5%
Frequncy	50/60Hz configurable
Overload	110% 125% 150% of the rated current for 5h/10'/1'
Frequency stability	±0.05% on mains failure;±2%(selectable from ±1% to ±5%)with mains supply present
System
Remote signaling	Volt free contacts
Remote controls	EPO and Bypass
Communication	RS232 + remote contacts
Weight(KG)N.M	200		220	230	260	290	340	440
