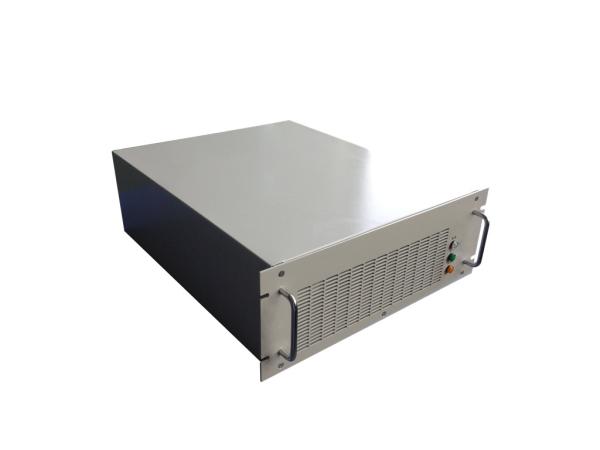

Name: Power Quality Filters 380 400 415 690VAC Harmonic Filters In Power Systems
Brand: CONSNANT
Price: 1 USD

Add to Cart

Active Power Loss < 5％ APF Active Power Filter With 380 / 400 / 415 / 690VAC

Functions indexes:

1 Neutral current first compensating, simultaneous compensation of Harmonic and reactive power

2 order of harmonic selectable compensating

3 System parameter settings online

4 RS485 standard, Modbus RTU communication protocol

Performance Indexes:

Output current capacity(A)		45	75	100	150	200
AC Input	Rated voltage	380×(1±15％)V
	Rated Frequency	50×(1±1％)Hz
	Rated topology	Three-phase three-wire
Technical Indexes	orders of harmonic compensating	Within 5～13: selectable Or within 5～25: all compensation
	Compensating rate (THDI_Load－THDI_S)/ THDI_Load	≥85％
	Reactive power compensating	Determined by priority
	Full response time	≤20ms
	Overload Protection	Automatically limited to the rated output current
	Active power loss	<5％Rated capacity
	Noise	<65dB
Environment & Conditions	Operating temperature	-10^OC～+45^OC
	Storing Temperature	-20^OC～+65^OC
	Relative humidity	<90%(25^OC)
Working Mode		Automatically or manually
Communication Interface		RS485 PC interface, remote control function
Operation Display		LCD monitoring panel; parameters setting online; touchable button operation; multi-parameter display
Display Accuracy		±2％FS
Expansion Ability		Directly connect in parallel with the same model machine
Protection		Grid over-voltage, Grid under-voltage, Grids missing phase, Grid wrong phase, the Machine over current and overheating
Protection level		IP20
dimension mm(W×H×D)		600×1200×400	600×2200×600		800×2200×600
		Non-standard sizes can be customized
Weight(kg)		150	200		400
