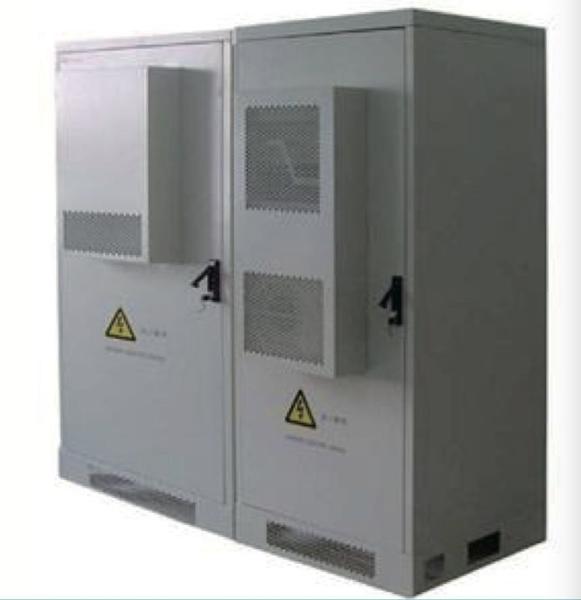

Fully Customized IP55 Outdoor Cabinet With Three Point European
Standard Locks
1. Introduction:
CONSNANT Outdoor Integrated Cabinet product includes two series,
one is functional cabinet that covers power cabinet, electronics
cabinet and battery cabinet; the other is 1U holding
cabinet(outdoor macro site, RRU),2U holding cabinet, 3U holding
cabinet
2. Product features:
1. Small volume, easy to to find the site.
Single cabinet covers an area of less than 1 square meter. The site
is easy to obtain, so the cabinet can be applied to the top of the
hill, roof, street and other scenes;
2. Subdivision temperature control, energy conservation and
emission reduction
Fine sub-class temperature control save energy maximumly; cabinet
with insulated sandwich panels weaken the impact of solar radiation
on the cabinet temperature
3. Modular design, fast provision
Modular design support bulk shipment and site installation, and
easy to expand
4. Strong structure, good rust-proof capacity
Aluminum profile frame structure, outside panel adopts color steel
panel with excellent performance of antiseptic, passing the salt
spray test for 960H.
5. Flexible housing and strong adaptability
Support the installation of main equipment, transmission equipment,
power supply, battery and other equipment from different
manufacturers and different installation methods.
Remarks: Fully Customized! Supply what you really need! The details in the
rpresentation is for reference.
Specification:
| Item | Specification |
| Internal dimension(W*D*H) | 800mm*800mm*1800mm |
| External dimension(W*D*H) | 905mm*1080mm*2105mm |
| Floor area(W*D) | 905mm*905mm |
| Base height | 200mm |
| Weight | 105KG( not including electronics and battery) |
| User space | 40U |
| Flame material | Galvanized steel sheet |
| Wall material | Color steel sandwich panel: color steel+polystyrene(polyurethane PU
optional) |
| Wall thick | 45mm |
| Door lock | Three point security locks, European standard |
| IP | IP55 |
| Cable laying arrangement. | 8*Φ50mm |
| Delivery form | Fully equiped |
| Operating temperature | -40℃～+70℃ |
| Cabinet relative humidity | 5%～100% |
| Air Circulation & Heat exhaust arrangement |
| Temperature control | PC300 |
| TCO2 power dissipation | 230W @L35/L35 |
| TCO2 refrigerating capacity | 400W @L35/L35 |
| Heater power consumption(optional) | 500W |
| Battery information |
| Specification | 650AH 2V/150AH 12V AGM battery |
| Capacity | 650AH/600AH |
| Group | 1/*4 groups |
| Others |
| Illumination | -48V LED light |
| Standard |
| Safety Standard | IEC/EN/UL 60950 |
| EMC Standard | EM 300 386-2 |
